Subaru EG-33
Overhaul/Modification/Assembly (Continued)


Page 3
Go To Page:  1  2  3  4  5  6

Return to Contents

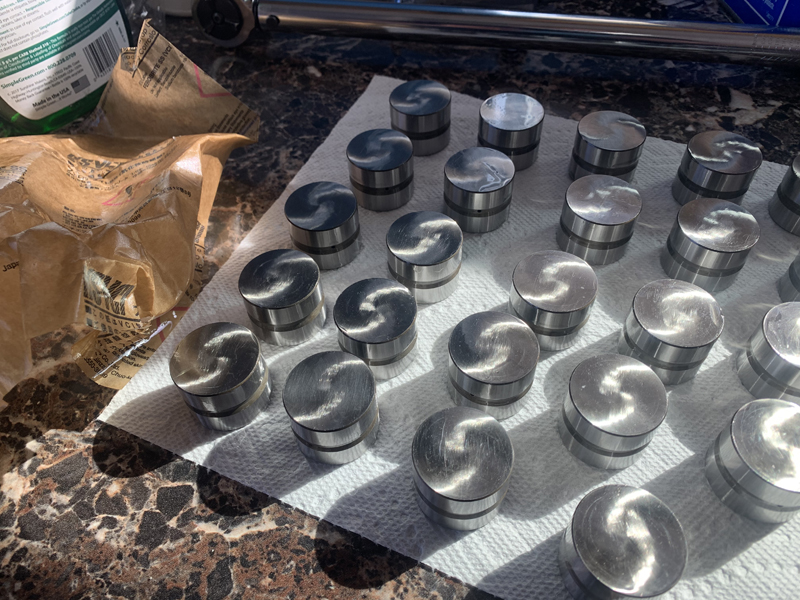

New Hydraulic Lifters ready to install
With new camshafts, we wanted to have new lifters as well

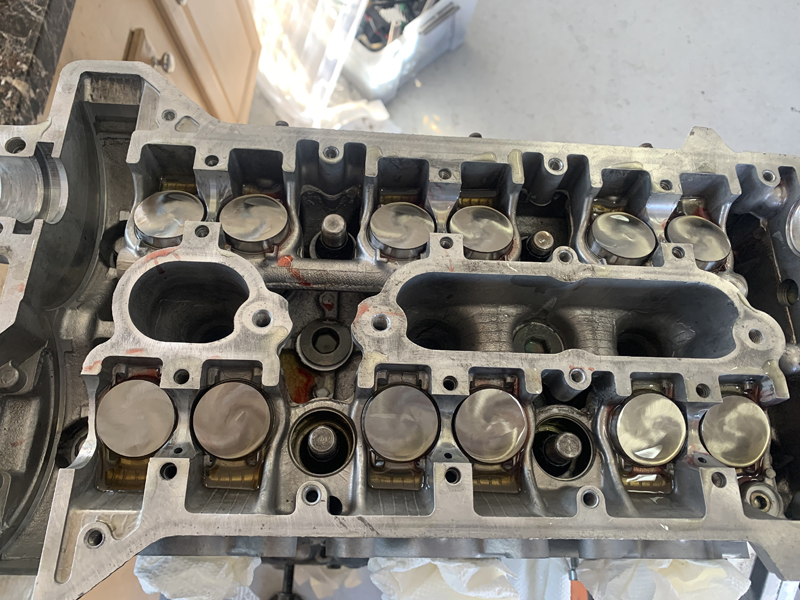

Lifters installed in head, cam installation next

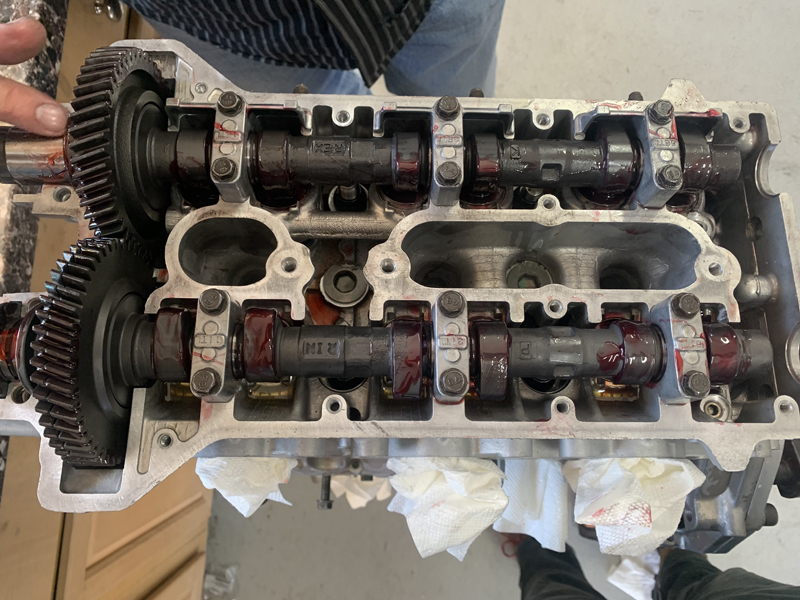

Right side cams timed and bearing caps torqued.
New lifters installed, then cams installed - exhaust cam first, then intake cam is "timed" to the exhaust cam and installed.




Right Side cams installed and timed to each other

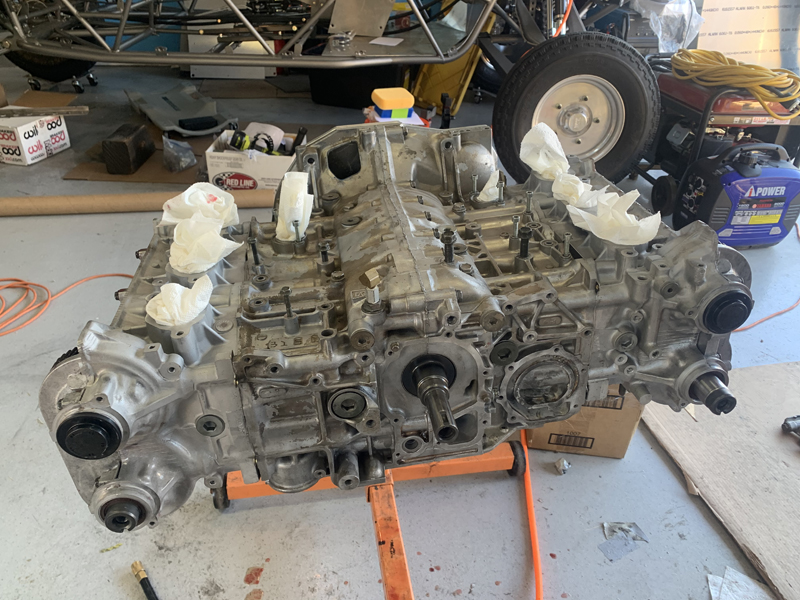

Both sets of cams installed, on to accessories

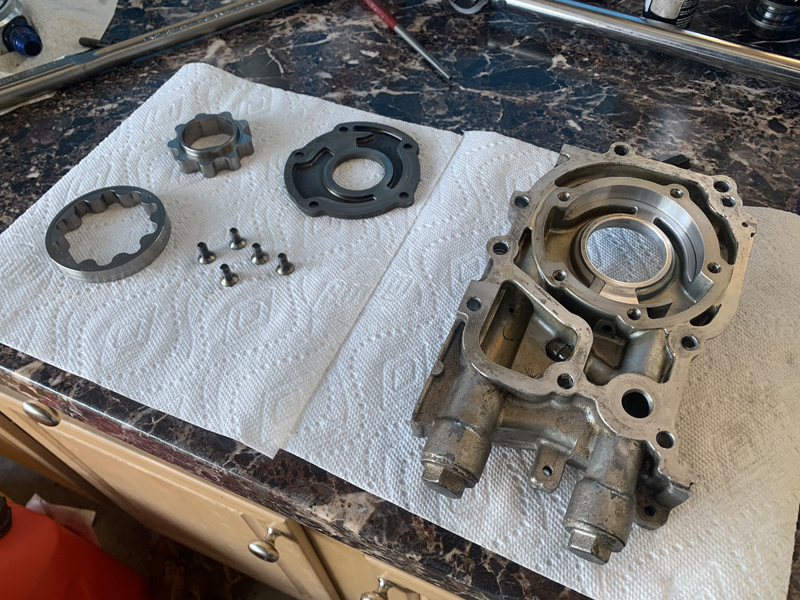

Oil Pump inspection and cleaning
Even though we're going to "dry sump" this engine, the stock oil pump assembly is retained for "scavenging" purposes.  Here, Trevor has disassembled, cleaned and inspected the pump prior to reassembly and installation on the engine.
