Subaru EG-33
Engine Tuning


Page 6
Go To Page:  1  2  3  4  5  6
Return to Contents

Our Subaru EG33 is a "normally aspirated" and fuel injected 3.5L engine (stock displacement is 3.3L but we installed larger diameter cylinder barrels during the build).  The engine requires some sort of  Engine Control Unit (ECU) to manage the ignition, fuel and cooling systems.  The engine's previous owner had used a "Motec M48" to serve those functions and a custom made "Sakata" wiring harness for the M48 came with the engine.  Unfortunately, the actual ECU wasn't included with the engine.  We found a used M48 on EBay for a reasonable price and had it on hand a few days later.  We had no idea what it had been used for previously but were fairly certain that it wasn't programmed for our engine type; our wiring harness would connect to it perfectly but without proper programming, the engine wasn't going to run...

Programming an ECU is not one of our strong points and the EG33 is a bit unusual.  Also, the M48 is an "older" Motec ECU and there wasn't a ready made "tune" for our engine available.  DanZio Performance Engineering is in the business of building and tuning engines for off-road cars; they were an obvious choice for our ECU programming needs.  We worked with Chris at DanZio on two occasions - the first to just get the engine running and then later to "tune" the engine on the dynamometer.  Everyone at DanZio was great and we're very happy with the results - we highly recommend them!

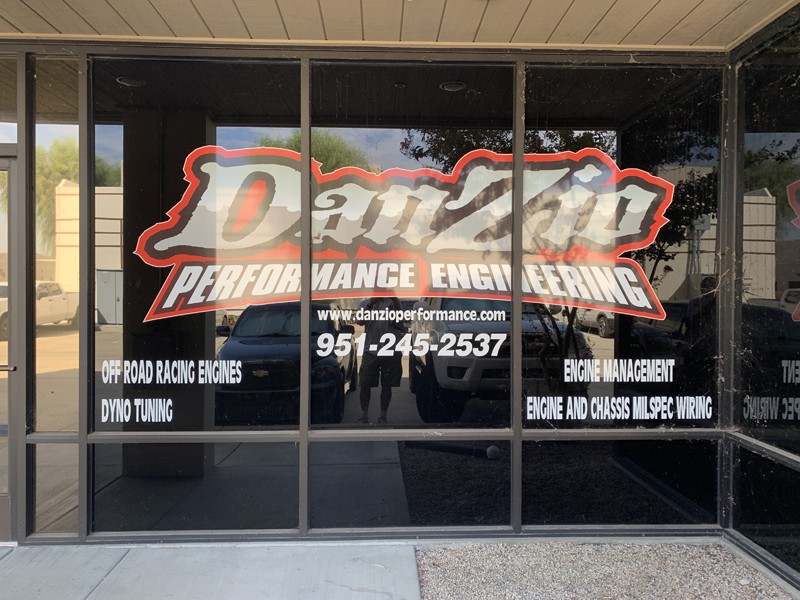

DanZio Performance Engineering
506 Central Ave., Lake Elsinore, CA 92530.  Telephone: (951) 245-2537

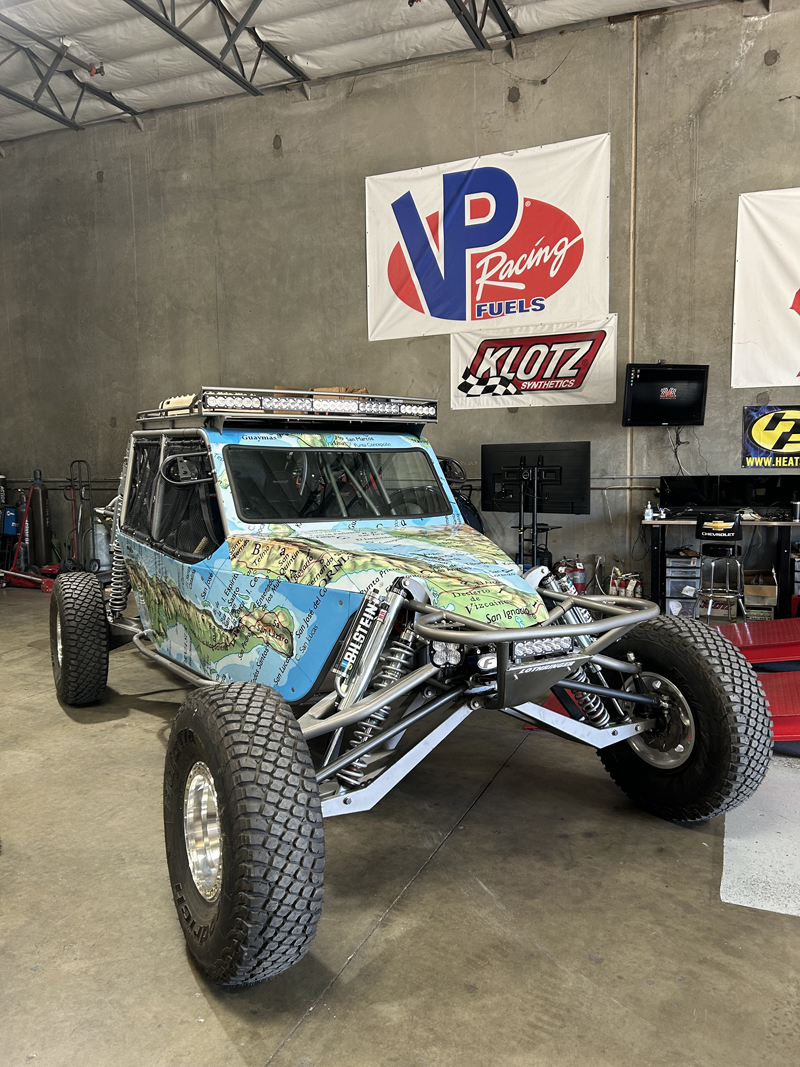

Finally in the shop for ECU programming
With the car mechanically complete, we brought it to DanZio for ECU programming.  In addition to actually controlling ignition and fuel delivery, the ECU also controls the radiator fans.  Initially, we'll run the engine "open loop" but will add an O2 sensor to run "closed loop" as soon as we adapt the sensor and wiring harness to work with each other...

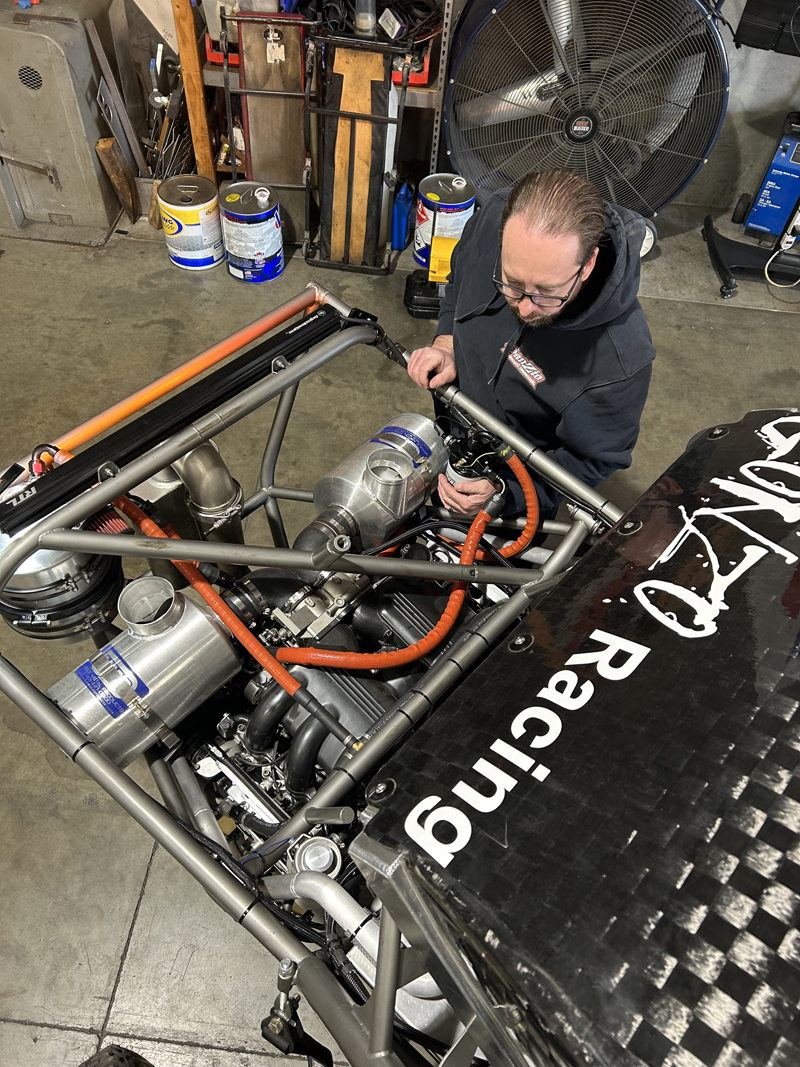

Chris checking things over
Chris was a pleasure to work with and was very complimentary of how we built the car.  That was nice validation from someone who really knows off-road race cars...

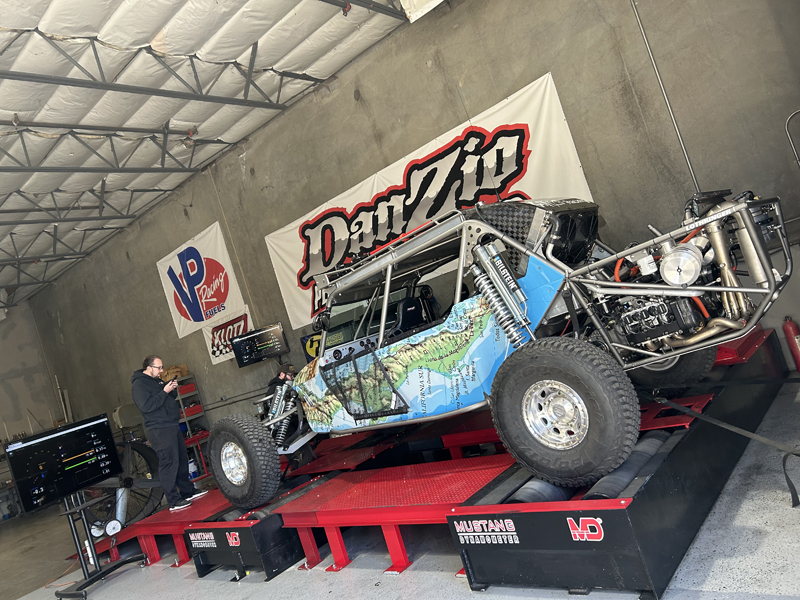

On the "Dyno" for final tuning
"White knuckle" time for us!  Happy to report that aside from a couple of very minor issues (a couple of "iffy" plug wires and a leaky fuel rail "O" ring) that were easily resolved, the tuning session went perfectly.




Power Curve Analysis display
Chris' tablet showing results for the current "pull"




Final "Pull" on the Dyno





Power Evaluation Sheet
The final evaluation sheet shows "at the wheels" numbers of 231.5 hp and 217.9 ft-lbs running on 91 octane "pump gas".  Chris estimated a 25% power loss between the engine and the wheels due to axle angle and other driveline losses.  That translates to an "at the flywheel" power output of about 309 hp - a 79 hp (34%) increase over a stock Subaru EG33 engine.  Those numbers are in line with our expectations and should result in plenty of reliable power for our "light weight" pre-runner.
